AVAILABLE DIMENSIONS

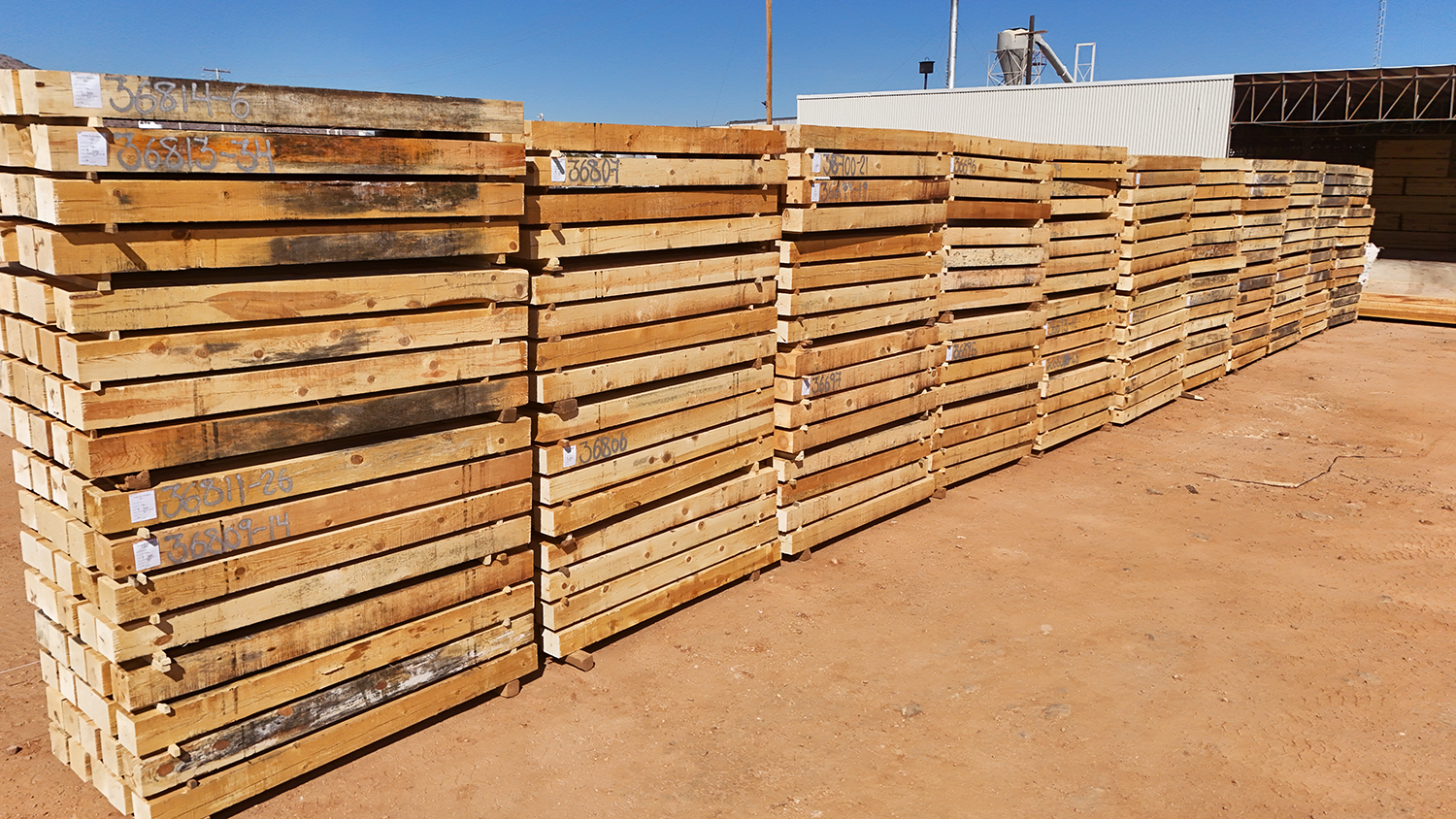

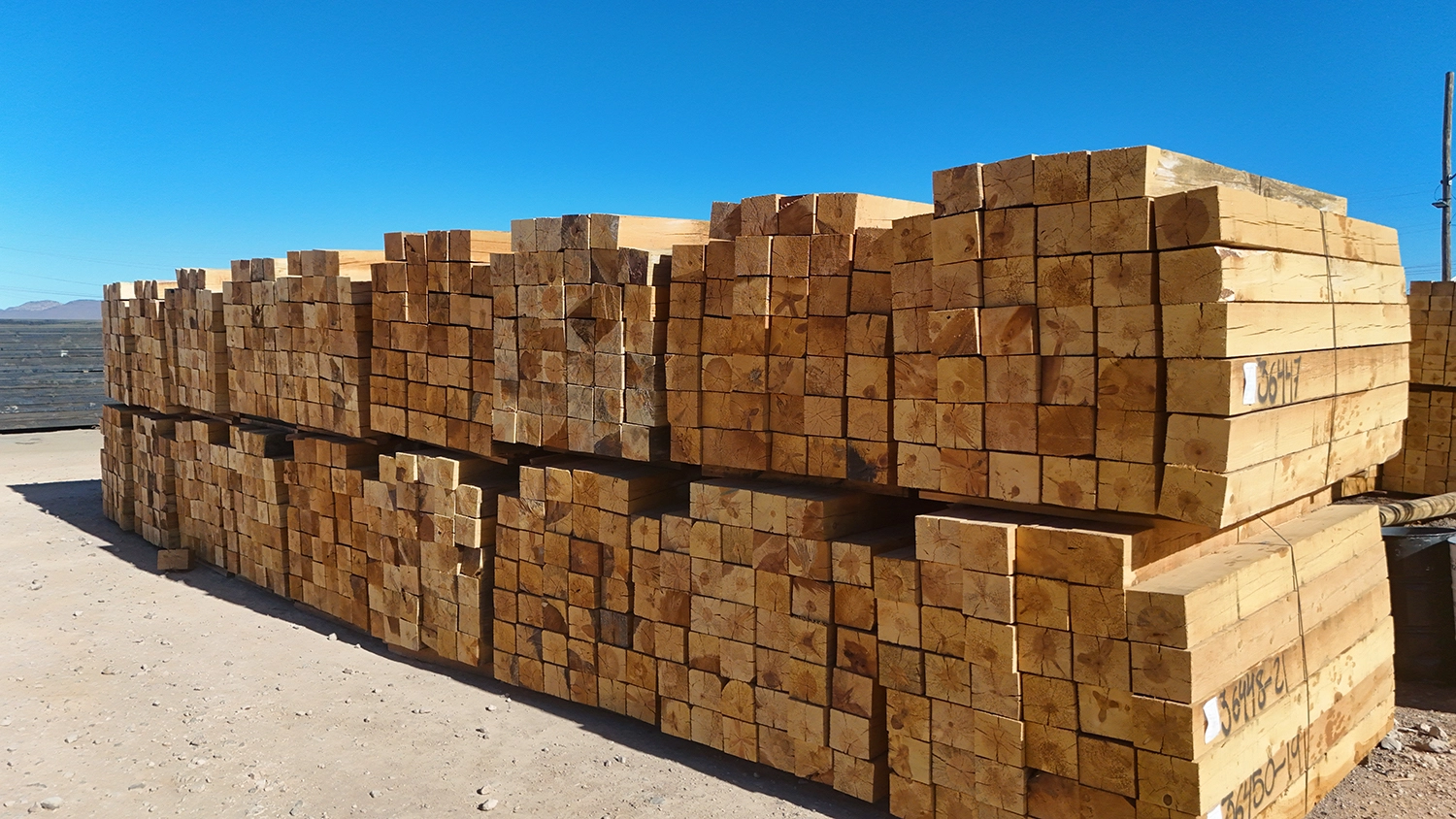

Standard Ties
7” x 8” x 8’
Switch Ties
7” x 9” x 8.5’ to 16’
7” x 10” x 12.5’ to 16’
AVAILABLE MATERIALS
Pine
Oak
Exceeding Expectations, Every Time.
Certified to meet Ferromex and NOM-056-SCT2-2016 standards, ensuring superior quality and durability. These certifications guarantee that our products comply with rigorous requirements for structural integrity, preservation, and resistance to environmental challenges.
Available Treatments

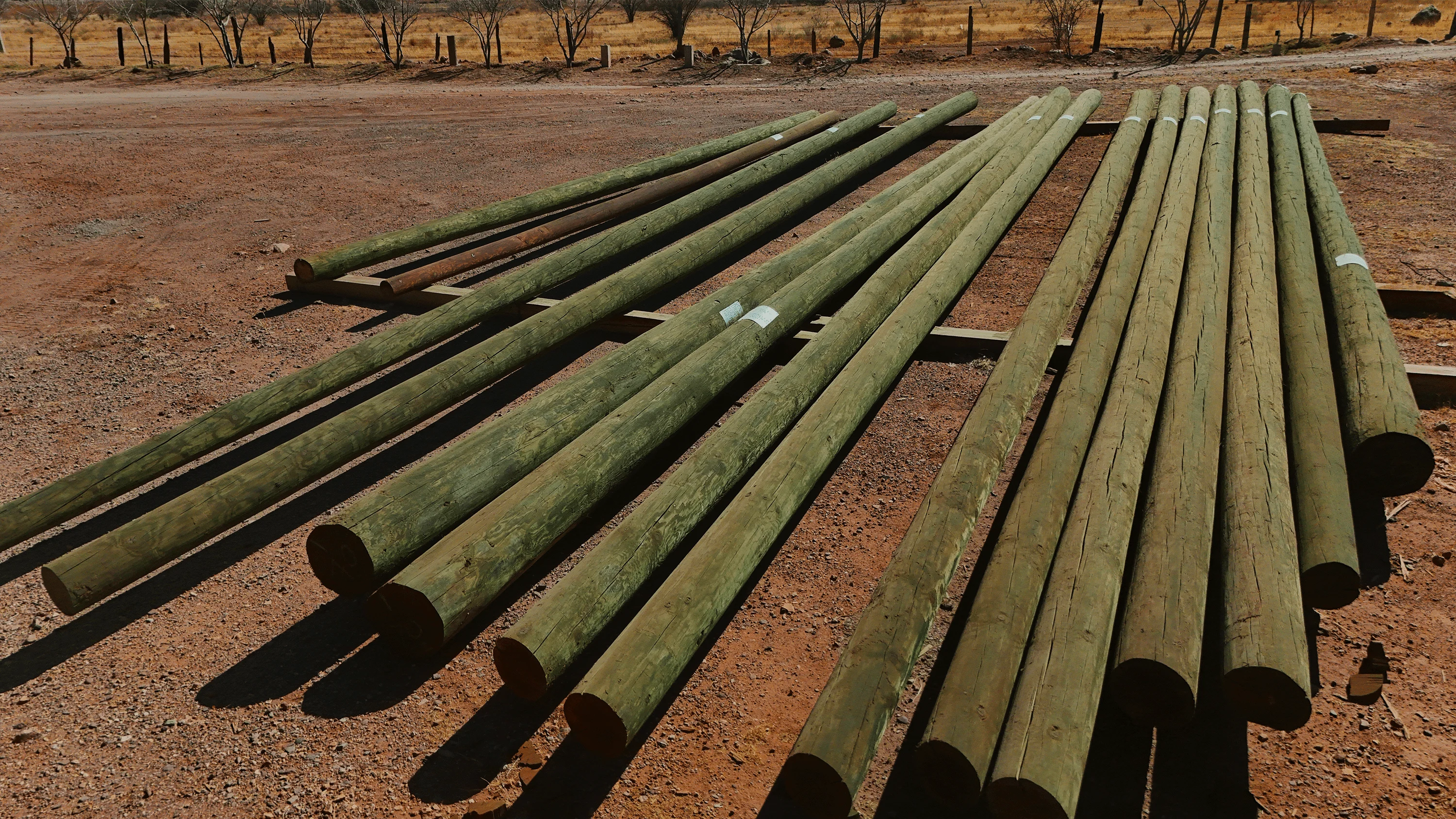

TREATED WITH
QNAP
Copper Naphthenate for wood (CuN), providing superior protection against decay, insects, and environmental conditions. This preservative ensures long-lasting durability, extending the lifespan of our ties while complying with industry standards
TREATED WITH
CREOSOTE
Our proprietary creosote treatment is applied under pressure to deeply penetrate the wood fibers, creating a strong barrier against decay, moisture, and insects. This method significantly extends the lifespan of the wood in outdoor and heavy-use applications.
Technical Specifications
Pine: Below 30%
Oak: Below 40%
Pine: 422 kg/cm²
Oak: 760 kg/cm²
Pine: 84,000 kg/cm²
Oak: 125,000 kg/cm²
Pine: 128 kg/m³
Oak: 112 kg/m³
Pine:
Full penetration for sapwood up to 25 mm
85% of sapwood thickness for larger sections
Oak: Full penetration or 65% of sapwood thickness
Pine: 422 kg/cm²
Oak: 760 kg/cm²
For refractory hardwood ties, pressure injection may be terminated based on refusal criteria.
Ferromex, NOM-056-SCT2-2016
